Field guide · the KV cache

Why it doesn't reread your whole chat.

A model writes one piece at a time, and every piece looks back at everything before it. That should get slower with every word. It mostly doesn't, because the model keeps notes. We timed GPT-2 with the notes and without them.

Scroll to open the drawer ↓

The desk · one replyGPT-2 small · temperature 0.7

One piece at a time.

One index card

Every piece files cards.

The piece writes:

key

What this card is about. Newer pieces match their question against it.

value

What this card says, once it's picked.

queryThe newest piece brings a question of its own, and checks it against every key in the drawer.

Without notesfirst 24 steps

Reread everything, every time.

piece run through the model

0pieces run through the model so far

With notes · the KV cachefirst 24 steps

Write one card, read the rest.

new cards writtencards read from the drawer

0pieces run through the model so far

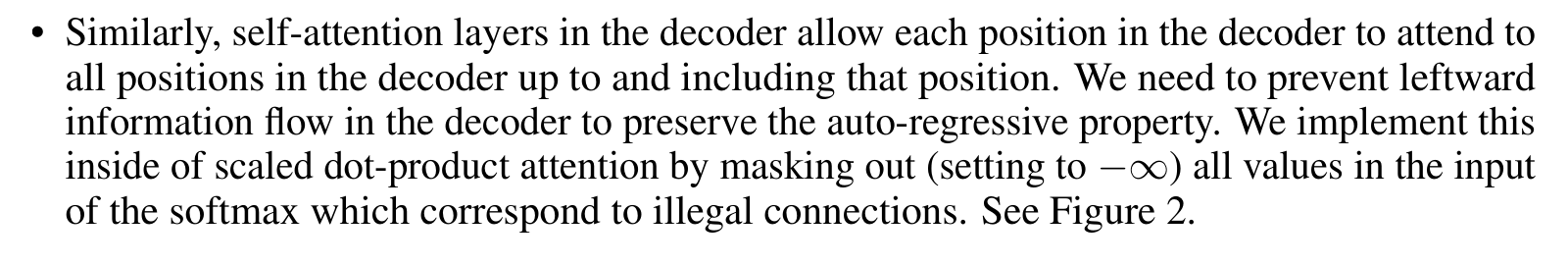

Vaswani et al.: • Similarly, self-attention layers in the decoder allow each position in the decoder to attend to all positions in the decoder up to and including that position. We need to prevent leftward information flow in the decoder to preserve the auto-regressive property. We implement this inside of scaled dot-product attention by masking out (setting to −∞) all values in the input of the softmax which correspond to illegal connections. See Figure 2.

Proof 1 · same reply?1,000 pieces each way

The notes change nothing.

Proof 2 · time for each new piece

Without notes, every word costs more.

The catch · a current open model

The drawer grows with every word.

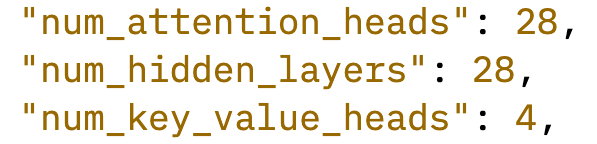

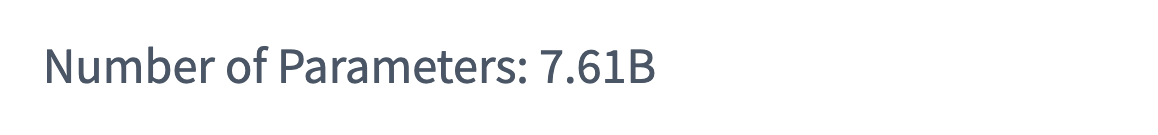

Qwen2.5-7B-Instruct config.json: "num_attention_heads": 28, "num_hidden_layers": 28, "num_key_value_heads": 4,

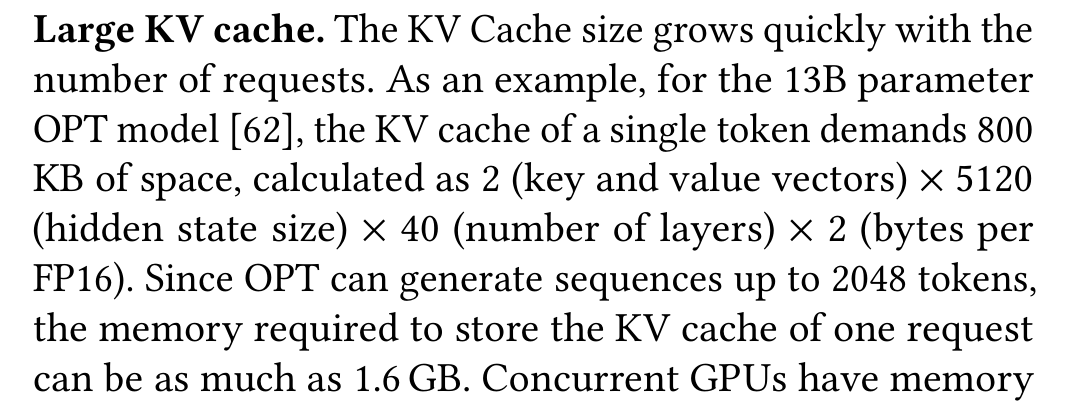

Kwon et al.: Large KV cache. The KV Cache size grows quickly with the number of requests. As an example, for the 13B parameter OPT model [62], the KV cache of a single token demands 800 KB of space, calculated as 2 (key and value vectors) × 5120 (hidden state size) × 40 (number of layers) × 2 (bytes per FP16). Since OPT can generate sequences up to 2048 tokens, the memory required to store the KV cache of one request can be as much as 1.6 GB. Concurrent GPUs have memory

Fix 1 · grouped-query attention

Share the drawers.

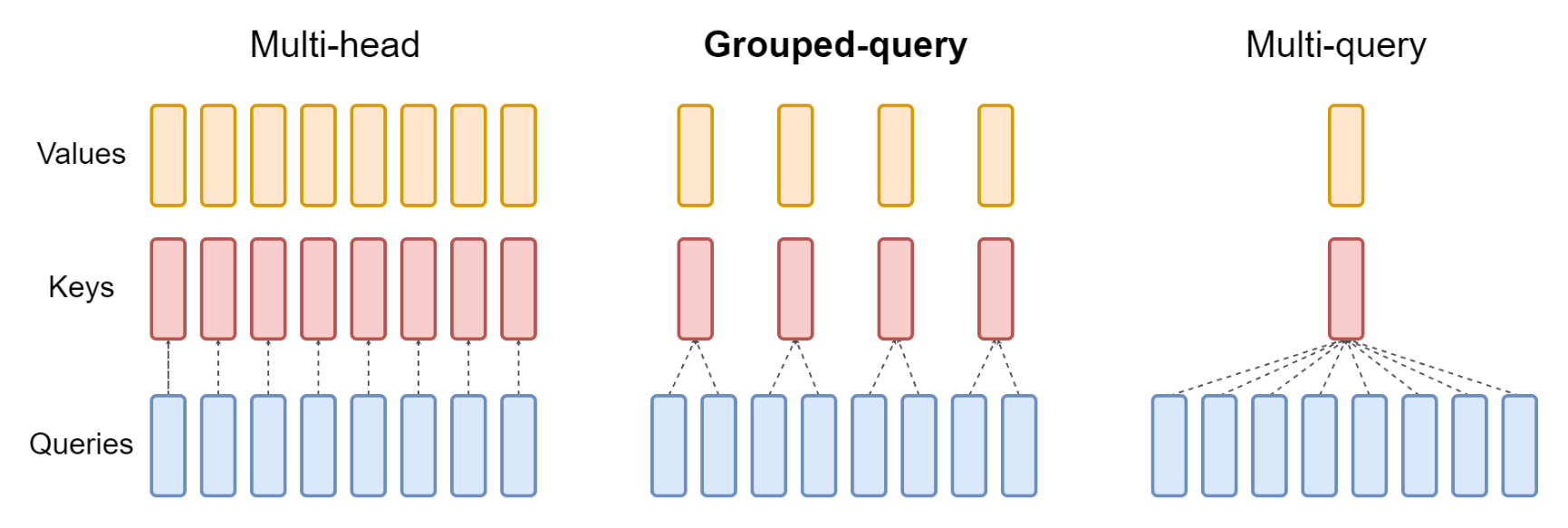

Ainslie et al. Figure 2 (diagram): Multi-head Grouped-query Multi-query Values Keys Queries

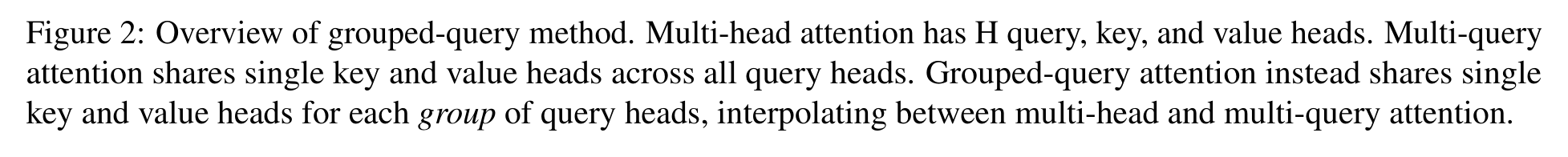

Ainslie et al.: Figure 2: Overview of grouped-query method. Multi-head attention has H query, key, and value heads. Multi-query attention shares single key and value heads across all query heads. Grouped-query attention instead shares single key and value heads for each group of query heads, interpolating between multi-head and multi-query attention.

Fix 2 · PagedAttentionvLLM

Don't reserve the whole drawer.

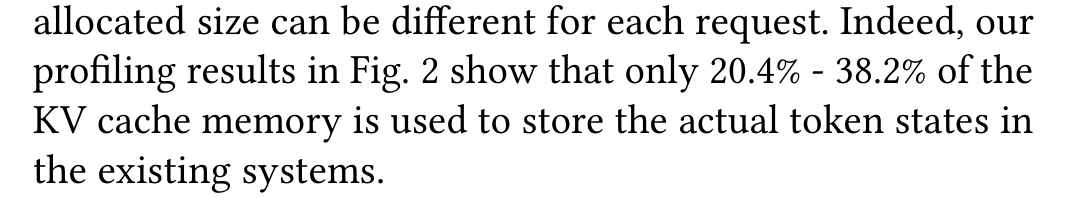

Kwon et al.: allocated size can be different for each request. Indeed, our profiling results in Fig. 2 show that only 20.4% - 38.2% of the KV cache memory is used to store the actual token states in the existing systems.

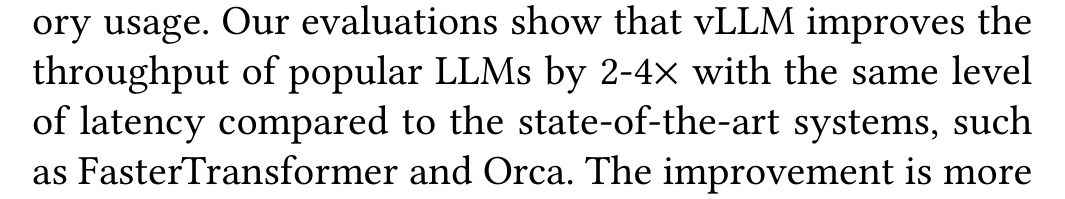

Kwon et al.: ory usage. Our evaluations show that vLLM improves the throughput of popular LLMs by 2-4× with the same level of latency compared to the state-of-the-art systems, such as FasterTransformer and Orca. The improvement is more

Keeping the drawer · between messagesmeasured

The slow part is filling it.

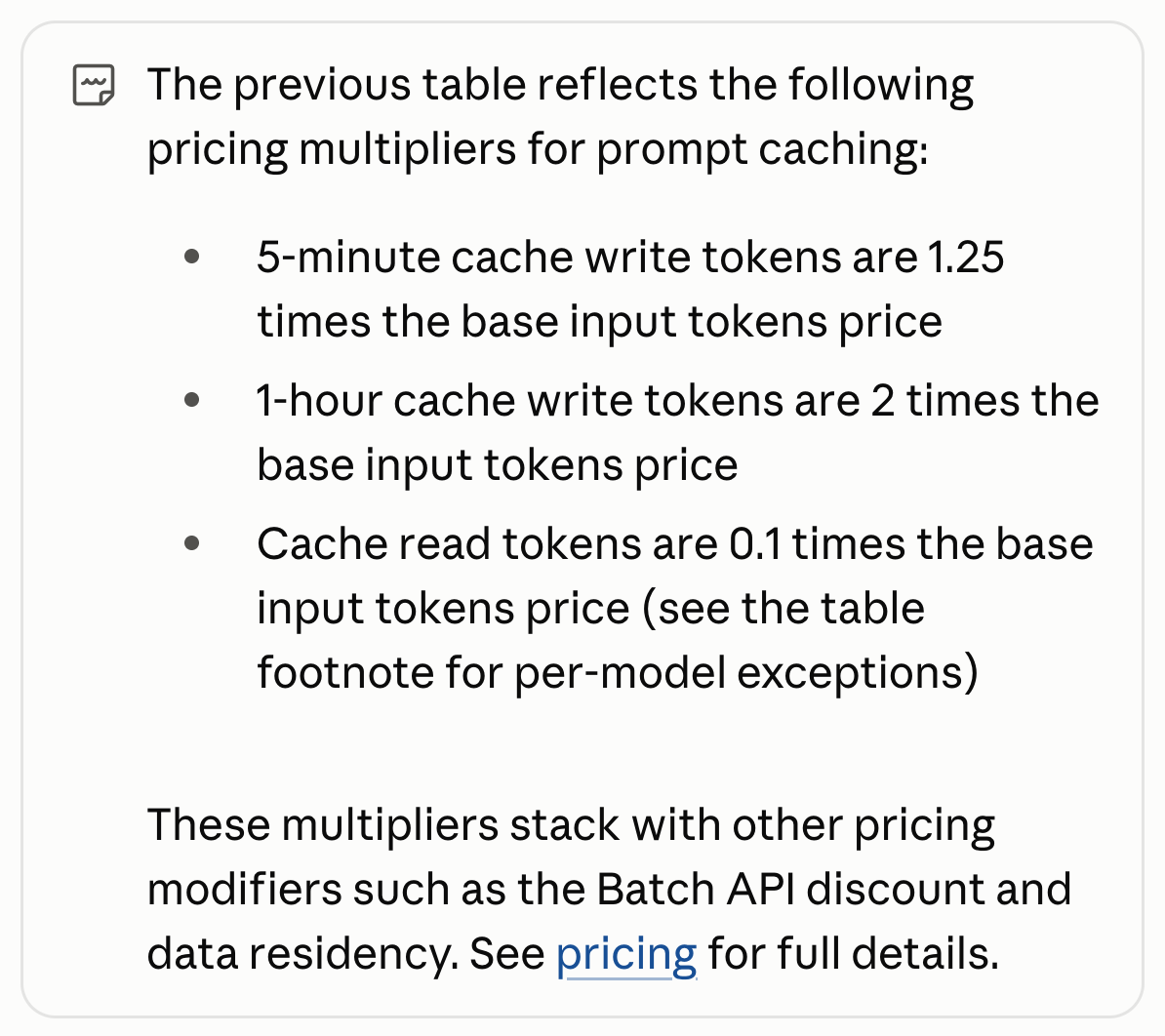

Anthropic prompt caching docs:  The previous table reflects the following pricing multipliers for prompt caching: 5-minute cache write tokens are 1.25 times the base input tokens price 1-hour cache write tokens are 2 times the base input tokens price Cache read tokens are 0.1 times the base input tokens price (see the table footnote for per-model exceptions) These multipliers stack with other pricing modifiers such as the Batch API discount and data residency. See pricing for full details.

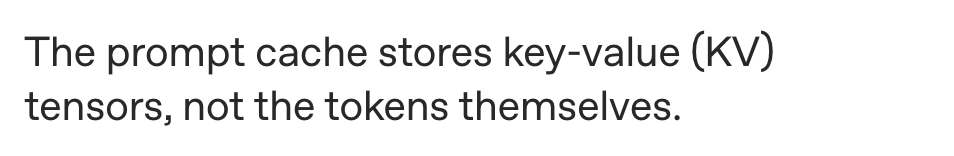

OpenAI prompt caching guide: The prompt cache stores key-value (KV) tensors, not the tokens themselves.

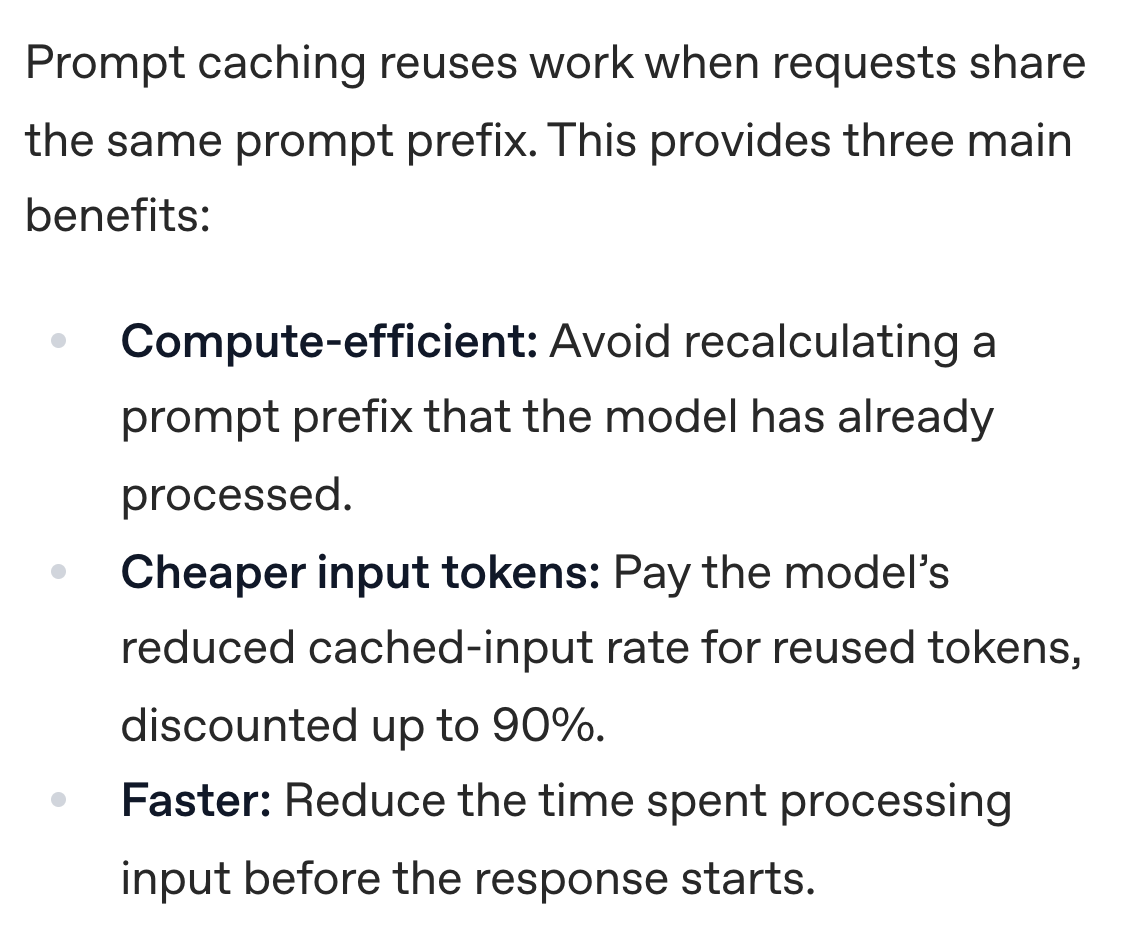

OpenAI prompt caching guide: Prompt caching reuses work when requests share the same prompt prefix. This provides three main benefits: Compute-efficient: Avoid recalculating a prompt prefix that the model has already processed. Cheaper input tokens: Pay the model’s reduced cached-input rate for reused tokens, discounted up to 90%. Faster: Reduce the time spent processing input before the response starts.

Take this with you

Why it doesn't reread your whole chat.

One piece at a time.

Every piece files cards.

Reread everything, every time.

Write one card, read the rest.

The notes change nothing.

Without notes, every word costs more.

The drawer grows with every word.

Share the drawers.

Don't reserve the whole drawer.

The slow part is filling it.

The model keeps notes. The notes are why long chats cost memory.
